High-voltage power lines are vital for the U.S. electrical infrastructure, but they present serious hazards like electrocution, arc flashes, and equipment damage if safety distances are not maintained. These distances, often called minimum approach distances (MAD) or clearances, are regulated to protect workers, the public, and property.
This detailed guide, updated as of October 2025, draws from the latest Occupational Safety and Health Administration (OSHA) standards and the 2023 edition of the National Electrical Safety Code (NESC), which remains the current version without major revisions in 2025. It covers worker safety, public clearances, infrastructure considerations, and best practices, including altitude adjustments, DC systems, and special scenarios like grain bins and swimming pools.
Article Content
Understanding Safety Distances and Their Importance
Safety distances minimize risks from direct contact, induced voltages, or arcing. They vary by voltage, activity type, and environment. OSHA focuses on workplace protections, while NESC emphasizes line design for public safety.
Key Risks and Factors Influencing Distances
- Electrical Hazards: Contact can cause fatalities; arc flashes reach thousands of degrees.
- Environmental Factors: Wind, ice, heat cause sagging; altitude reduces air insulation, requiring increases (e.g., OSHA altitude corrections above 3,000 feet).
- Voltage Types: AC (common) and DC (e.g., in some transmission); distances differ.
- User Groups: Qualified workers (trained with PPE) use reduced distances; unqualified must stay farther.
According to OSHA and related data, electrical incidents, including overhead power line contacts, account for a significant portion of workplace fatalities, with overhead lines responsible for 48.2% of all electrical fatalities. Always assume lines are energized unless confirmed otherwise.
Regulatory Overview
- OSHA (29 CFR 1910 & 1926): Enforceable for workers; no major 2025 updates from the 2014 revisions.
- NESC (IEEE 2023 Edition): Adopted by utilities and states for line design; includes wind/ice maps and clearances for communications/wireless. The next edition (2028) preprint is scheduled for July 2025.
- State/Utility Variations: States like California add wildfire rules; utilities (e.g., PG&E) exceed minima.
OSHA Standards for Worker and Equipment Safety
OSHA’s rules apply to general industry (1910.269) and construction (1926.1408), defining MAD for energized lines.
Minimum Approach Distances for Equipment (1926.1408 Table A)
For operations near lines up to 1,000 kV (phase-to-phase). If voltage unknown, assume highest and contact utility. Use spotters, alarms, and training.
| Voltage (nominal, kV, AC) | Minimum Clearance (feet) |
|---|---|
| Up to 50 | 10 |
| Over 50 to 200 | 15 |
| Over 200 to 350 | 20 |
| Over 350 to 500 | 25 |
| Over 500 to 750 | 35 |
| Over 750 to 1,000 | 45 |
| Over 1,000 | As set by utility or qualified engineer |
MAD for Qualified Workers (1910.269)
Trained workers with PPE can approach closer. Use equations from Table R-3 or pre-calculated tables (R-6 for ≤72.5 kV, R-7 for >72.5 kV). Factor in transient overvoltages (T) and altitude.
Table R-6: AC MAD ≤72.5 kV (Sea Level)
| Voltage (kV, phase-to-phase) | Phase-to-Ground (ft) | Phase-to-Phase (ft) |
|---|---|---|
| 0.050 to 0.300 | Avoid Contact | Avoid Contact |
| 0.301 to 0.750 | 1.09 | 1.09 |
| 0.751 to 5.0 | 2.07 | 2.07 |
| 5.1 to 15.0 | 2.14 | 2.24 |
| 15.1 to 36.0 | 2.53 | 2.92 |
| 36.1 to 46.0 | 2.76 | 3.22 |
| 46.1 to 72.5 | 3.29 | 3.94 |
Table R-7: AC MAD >72.5 kV (Sea Level)
| Voltage (kV, phase-to-phase) | Phase-to-Ground (ft) | Phase-to-Phase (ft) |
|---|---|---|
| 72.6 to 121.0 | 3.71 | 4.66 |
| 121.1 to 145.0 | 4.27 | 5.38 |
| 145.1 to 169.0 | 4.79 | 6.36 |
| 169.1 to 242.0 | 6.59 | 10.10 |
| 242.1 to 362.0 | 11.19 | 18.11 |
| 362.1 to 420.0 | 13.94 | 22.34 |
| 420.1 to 550.0 | 16.63 | 27.03 |
| 550.1 to 800.0 | 22.57 | 37.34 |
Altitude Correction (Table R-5)
| Altitude (ft) | Factor (A) |
|---|---|
| 0-3,000 | 1.00 |
| 3,001-4,000 | 1.02 |
| 4,001-5,000 | 1.05 |
| 5,001-6,000 | 1.08 |
| 6,001-7,000 | 1.11 |
| 7,001-8,000 | 1.14 |
| 8,001-9,000 | 1.17 |
| 9,001-10,000 | 1.20 |
| 10,001-12,000 | 1.25 |
| 12,001-14,000 | 1.30 |
| 14,001-16,000 | 1.35 |
| 16,001-18,000 | 1.39 |
| 18,001-20,000 | 1.44 |
DC MAD (Table R-8, Example with Overvoltage)
For DC >250 kV; examples at T=1.5:
| Max Line-to-Ground (kV) | Distance (ft) |
|---|---|
| 250 | 3.67 |
| 400 | 5.25 |
| 500 | 6.76 |
| 600 | 8.60 |
| 750 | 11.84 |

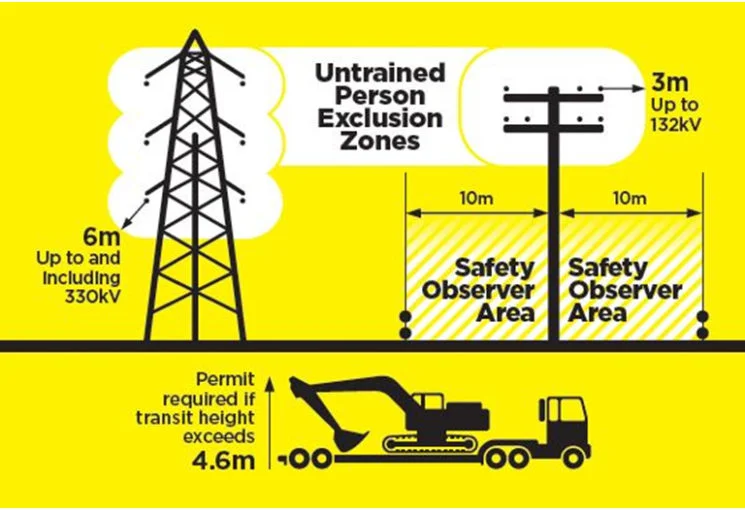

Unqualified workers: ≥10 ft for ≤50 kV.
NESC Guidelines for Public and Infrastructure Safety
NESC specifies clearances for line installation, measured at maximum sag (e.g., 120°F or iced).
Vertical Clearances (Table 232-1)
At largest sag; voltages phase-to-ground. Examples for open supply conductors:
| Surface | Open Supply 0-750V (ft) | Open Supply >750-22kV (ft) | Open Supply >22-50kV (ft, add per kV) |
|---|---|---|---|
| Railroads | 24.5 | 26.5 | 27.0 + 0.5 per kV over 22 |
| Roads/Trucks | 16.5 | 18.5 | 19.0 + 0.5 per kV over 22 |
| Driveways/Alleys | 16.5 | 18.5 | 19.0 + 0.5 per kV over 22 |
| Fields/Orchards | 16.5 | 18.5 | 19.0 + 0.5 per kV over 22 |
| Pedestrians Only | 12.5 | 14.5 | 15.0 + 0.5 per kV over 22 |
| Water (No Sailboats) | 15.0 | 17.0 | 17.5 + 0.5 per kV over 22 |
| Sailboating (<20 acres) | 18.5 | 20.5 | 21.0 + 0.5 per kV over 22 |
| Sailboating (20-200 acres) | 26.5 | 28.5 | 29.0 + 0.5 per kV over 22 |
| Sailboating (200-2000 acres) | 32.5 | 34.5 | 35.0 + 0.5 per kV over 22 |
| Sailboating (>2000 acres) | 38.5 | 40.5 | 41.0 + 0.5 per kV over 22 |
Horizontal and Building Clearances (Rule 234)
Phase conductors ≥4.5 ft from structures with 50 mph wind.
| To… | Horizontal (ft, general) | Notes |
|---|---|---|
| Walls | 4.5-7.5 (voltage-dependent) | >4.5 ft with wind |
| Accessible Roofs | 8-14.5 | Overhangs |
| Non-Accessible Roofs | 3-14.5 | |
| Windows/Doors | 3 | Service drops |
| Signs/Billboards | 3.5-7.5 | |
| Bridges | Varies; consult NESC | |
| Swimming Pools | 10 horizontal; 22.5-25 vertical | No over pools; neutrals exempt if ≥10 ft from edge |
Special Clearances: Grain Bins (Rule 234F)
- Loading Side: 18 ft for neutral/comm; 30 ft for primary lines above bin height (B).
- Non-Loading Side: 18 ft neutral; additional based on 2.5xB for primary.
- Zone: Maintain 18 ft in all directions from probe ports; consider auger paths.
Diagrams recommend ≥18 ft above bins; utilities may require more.
State, Utility, and Sector-Specific Practices
- States: California wildfire zones require wider rights-of-way, enhanced vegetation management, and safety standards under General Order 95 to prevent ignitions.
- Utilities: PG&E uses enhanced powerline safety settings; many maintain 50–200 ft rights-of-way with no-encroachment zones.
- Critical Sectors: FAA for airports; redundant systems for hospitals. No buildings under transmission lines in many areas.
Always call 811 before digging.
Best Practices, Enforcement, and Resources
For Workers
- De-energize if possible; use insulated tools/PPE.
- Hazard assessments; training per OSHA.
- MAD calculator: Available on osha.gov for >72.5 kV.
For Public
- ≥10 ft from downed lines; report to 911/utility.
- Avoid drones/kites near lines.
- Building permits: Utility approval required.
Enforcement
- Fines up to $16,550 for serious violations and $165,921 for willful or repeated violations (2025 adjusted).
- Inspections by utilities/OSHA.
For site-specific advice, consult professionals. Resources: osha.gov, ieee.org/nesc. Stay safe—respect the power!
